Weaving process/Loom timing

In order to interlace warp and filling yarn to make woven fabric, it is necessary that four basic operations are implemented in sequence and continuously. These include:

Weaving process: sheddingWeaving process: shedding

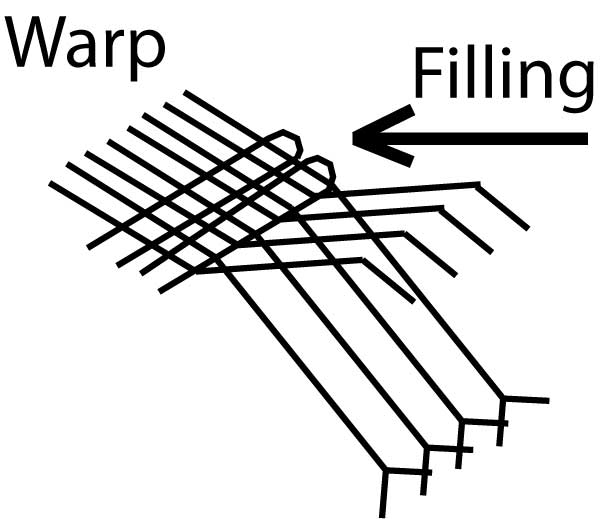

1. Shedding

The separation of the warp threads into two (or more) sheets according to a pattern to allow for weft insertion (the most important weaving operation)

Weaving process: shedding and weft insertionWeaving process: shedding and weft insertion

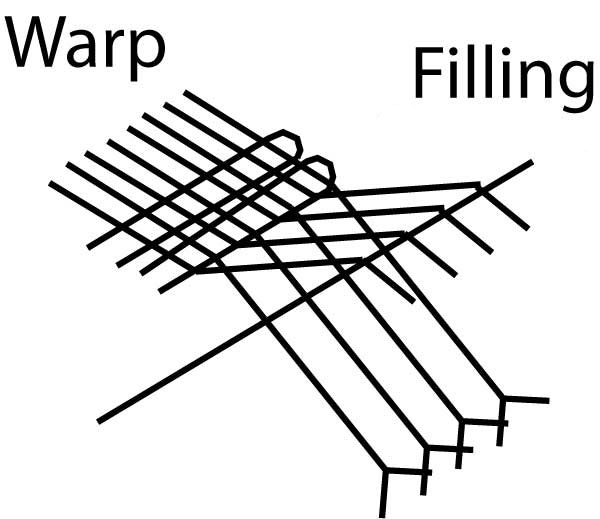

2. Weft insertion (picking)

To place weft yarn in the shed (the complementing weaving operation)

Weaving process: shedding, weft insertion and beat-upWeaving process: shedding, weft insertion and beat-up

3. Beating-up

Forcing the inserted pick into the shed up to the fell of the cloth

4. Letting off and taking up

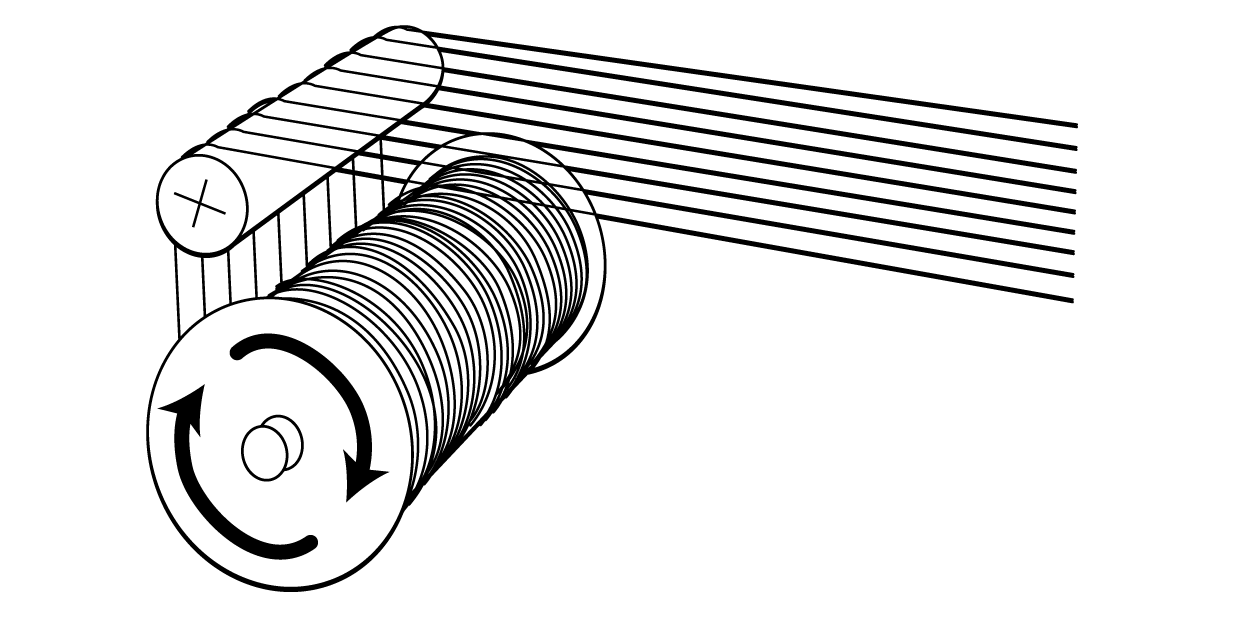

Warp let-off: supplying more warp yarn by unwinding of the warp beam as the cloth is woven.

Weaving process: Warp let-offWeaving process: Warp let-off

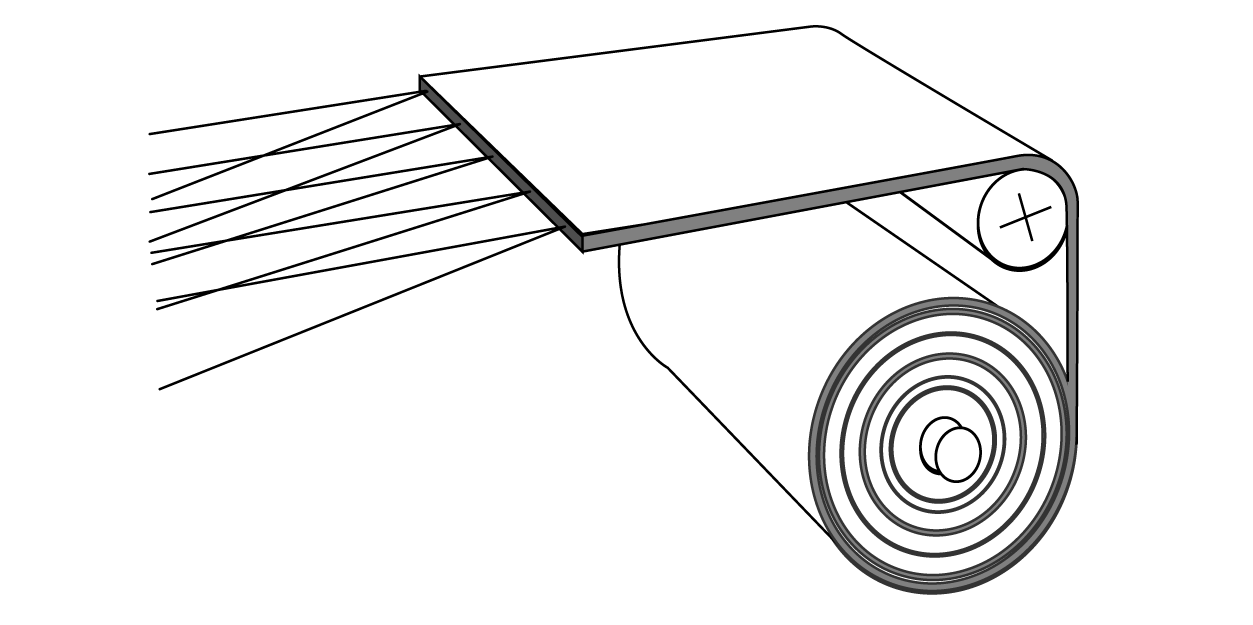

Fabric take-up: draw forward the woven fabric as a new pick is inserted.

Weaving process: Fabric take-upWeaving process: Fabric take-up
