HTTP: Hyper Text Transfer Protocol

  • Protocol for transfer of resources
    • Resources:
      • Files
      • Result of :
        • Database query
        • Program execution
        • Automatic translation of a document
  • Specified in two incompatible versions:
    • HTTPv1.0 → RFC 1945
    • HTTPv1.1 → RFC 2616
  • Client-Server Model
  • Operates with simple “transactions”
    • Request – Response
      • Client requests objects → generates “requests”
        • Messages in ASCII format (understandable for humans
      • Server transfers objects → generates “responses”
        • ASCII messages MIME type (RFC 822)
    • Stateless and Connectionless protocol
      • Server does not store information on clients or transactions
      • Simplifies Servers design  High performance web servers, capable of handling many TCP connections
  • Uses TCP as transport layer protocol:
    • Client initiates a TCP connection (creates socket) to server, port 80
    • Server accepts TCP connection from client (connection socket is created in server)
    • HTTP messages (application-layer protocol messages) exchanged between browser (HTTP client) and Web server (HTTP server)
    • TCP connection closed
  • HTTP response status codes
    • 200 OK
      • request succeeded, requested object later in this msg
    • 301 Moved Permanently
      • requested object moved, new location specified later in this msg (Location:)
    • 400 Bad Request
      • request msg not understood by server
    • 404 Not Found
      • requested document not found on this server
    • 505 HTTP Version Not Supported

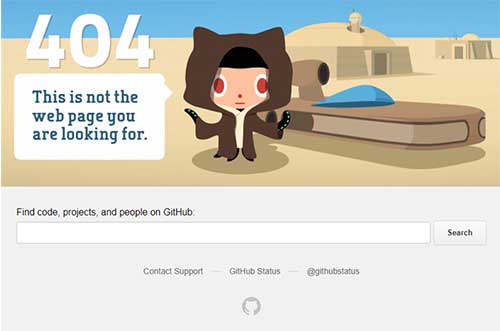

Picture showing a screenshot of a web browser with the 404 HTTP code

Question

Regarding HTTP:

  1. If you are seeing this web page right now, what status code have you received?
    1. 404
    2. 200
    3. 400
    4. 301
  2. Check answer
  3. What transport layer protocol uses?
    1. VDP
    2. UDP
    3. CDP
    4. None of the above
  4. Check answer
