Hydrophilicity

  • Polymer should have polar groups/moieties
  • These groups attracts water molecules
  • Hydrophilicity results in comfortable feel
  • Hydrophilicity also prevents charge build-up (static electricity)
  • Static electricity is discharged by the water molecules to the surroundings.
  • Static electricity:
    1. Dirt particle attraction
    2. Discomfort (ballooning, clinging)

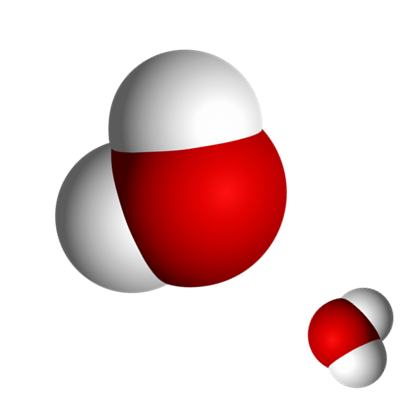

Water molecules
Instantaneous dissipation for conductive materials

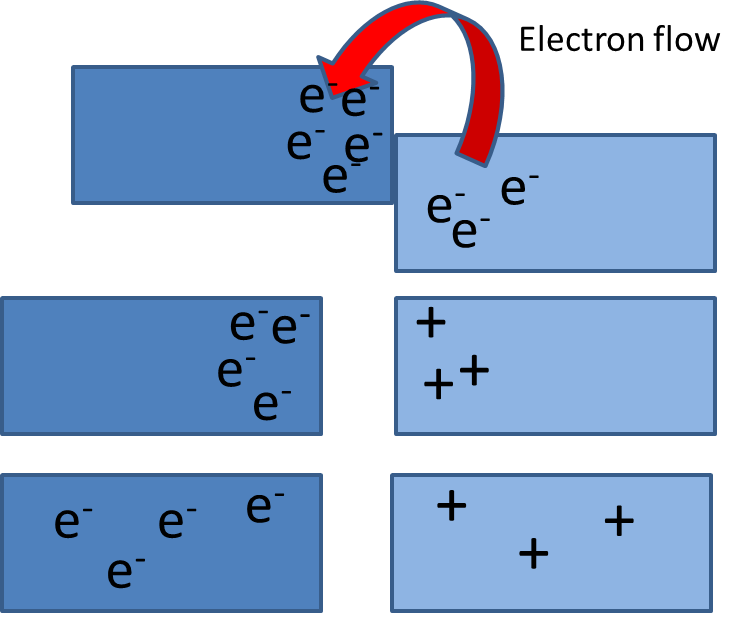

  • Electric charge generated by frictional forces is called triboelectrification.
  • One can order materials and fibres in a series (triboelectric series).
  • A material will be positively charged when rubbed against another material below it in the series.
Fibre type
Positive end of series Negative end of series
Glass, Wool, Nylon 6, Nylon 6,6 Rayon, Cotton, Acetate, Hemp, Silk, Polyester, Acrylic, Modacrylic Polyethylene, Polypropylene Polytetrafluorethylene

The greater the distance between the materials in the series the greater the electric charge.
