Network layer: data plane, control plane

The network layer consists of a data plane and a control plane:

  • Data plane
    • Determines how datagram arriving on router input port is forwarded to Router output port
    • It has a forwarding function from a local perspective
  • Control plane
    • Covers network-wide logic
    • Determines how datagram is routed among routers along end-end path from source host to destination host
    • There are two control-plane approaches:
      • Traditional routing algorithms: implemented in routers
      • Software-defined networking (SDN): implemented in (remote) servers (in the next figure we have an example of an opensource SDN architecture)

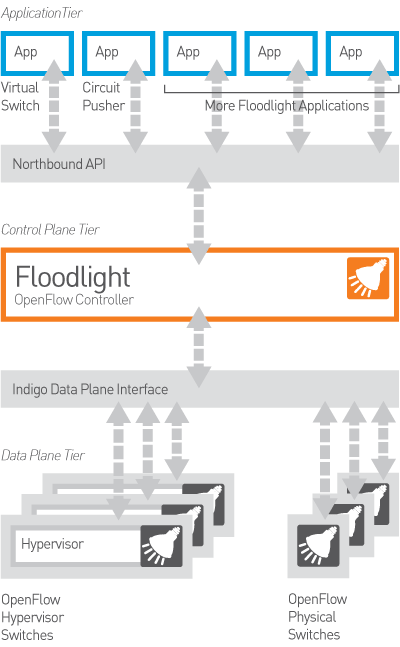

This figure shows a software defined network architecture. In the aplication tier different control applications connect to the control plane tier through the northbound API. The control plane tier is an OpenFlow controller which interacts with OpenFlow Physical switches and hypervisor switches.
