ICMP: Internet control message protocol

Used by hosts & routers to communicate network-level information such as:

  • Error reporting: unreachable host, network, port, protocol
  • Echo request/reply (used by ping)

ICMP can be seen as network-layer “above” IP:

  • ICMP messages carried in IP datagrams
  • ICMP message: type, code, plus first 8 bytes of IP datagram causing error

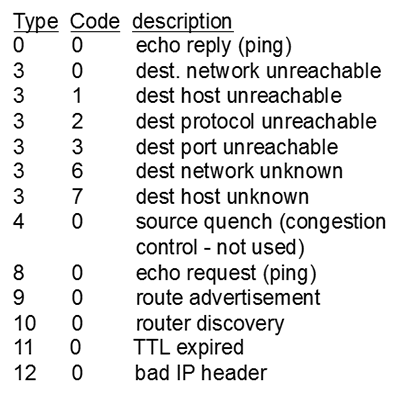

This figure shows the type and code fields in ICMP message. Some interesting type and code pairs are echo request and echo reply (ping), TTL expired or bad IP header.
