Protocol stack

The Internet protocol stack is defined in terms of four or five layers. Link and physical layers sometimes are joined and presented together. The five layers are:

  • Application: supporting network applications
    • FTP, SMTP, HTTP, Twitter, Facebook, …
  • Transport: process-process data transfer
    • TCP, UDP
  • Network: routing of datagrams from source to destination
    • IP, routing protocols
  • Link: data transfer between neighboring network elements
    • Ethernet, 802.11 (WiFi), PPP, Bluetooth, …
  • Physical: bits “on the wire”

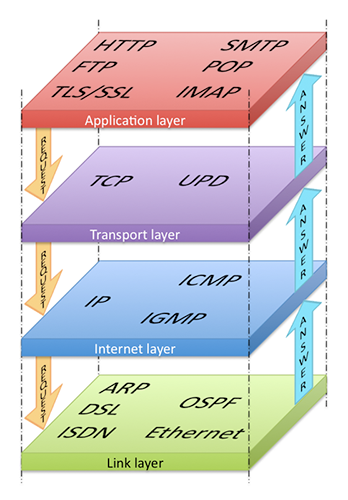

This figure shows the internet protocol stack which is formed by the application, transport, internet and link layers. In the application layer we have protocols such as HTTP, FTP, SMTP, POP3, IMAP, TLS/SSL. In the transport layer we have TCP and UDP. In the internet layer IP is the main protocol, but we also have ICMP and IGMP. Finally, ARP and Ethernet are two examples of protocols in the link layer.
