The link layer

Data-link layer has responsibility of transferring datagram from one node to physically adjacent node over a link. Links are communication channels that connect adjacent nodes along communication path. We may have wired, wireless links and LANs. Link layer packet is called frame, which encapsulates datagrams.

Which services may offer the link layer?

  • Framing
  • Reliability (usually implemented on transport layer, not in link layer)
  • Flow control (usually implemented on transport layer, not in link layer)
  • Error detection (parity bits, CRC, …)
  • Error correction (FEC, …)
  • Medium access control
  • Addressing

Link layer is implemented in “adaptor” (network interface card NIC) or on a chip

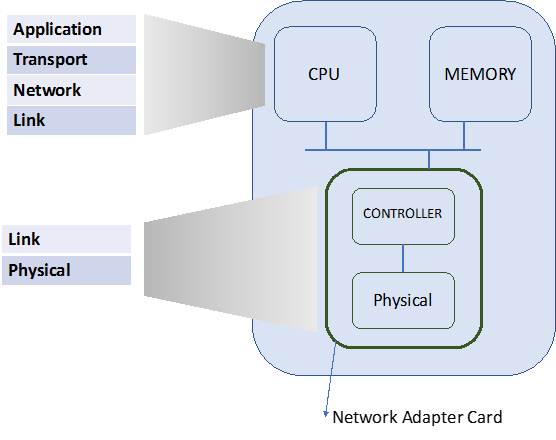

This figure shows a network adapter card. CPU and memory is connected with the Network Card through a communication bus. The components of the Network Adapter is the Controller and the physical interface. Both, implement the link and physical layers of the protocol stack.
