Wireless networks

Depending on the number of hops and the existence of an infrastructure we have the following wireless network taxonomy:

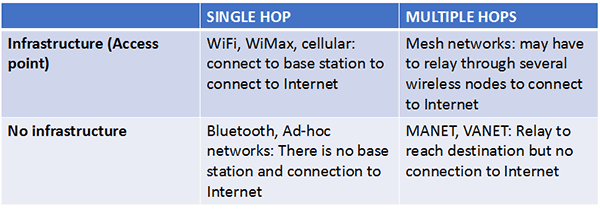

Figure 29 Wireless Network taxonomy defined in terms of the number of hops and the existence of an infrastructure

Important differences from wired link …

  • Decreased signal strength: radio signal attenuates as it propagates through matter (path loss)
  • Interference from other sources: standardized wireless network frequencies (e.g., 2.4 GHz) shared by other devices (e.g., phone); devices (motors) interfere as well
  • Multipath propagation: radio signal reflects off objects ground, arriving ad destination at slightly different times
  • Hidden terminal problem: two or more stations connected to other station cannot hear each other

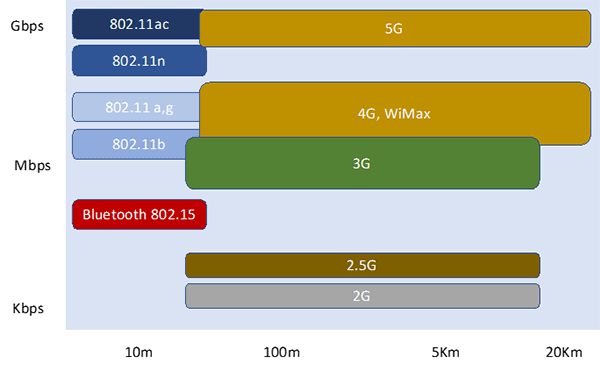

The figure below shows different wireless technologies in terms of distance and bitrate.

Figure shows different wireless technologies categorized in terms of distance and speed. For short distances we have different WiFi standards and Bluetooth. For WAN wireless networks the main current tecnologies are 3G and 4G. It is expected the introduction of 5G in a near future.
