Inter-AS routing: BGP

BGP (Border Gateway Protocol): the de facto inter-domain routing protocol

  • “glue that holds the Internet together”

BGP provides each AS a means to:

  • eBGP: obtain subnet reachability information from neighboring ASes
  • iBGP: propagate reachability information to all AS-internal routers.
  • Determine “good” routes to other networks based on reachability information and policy

Allows subnet to advertise its existence to rest of Internet: “I am here”

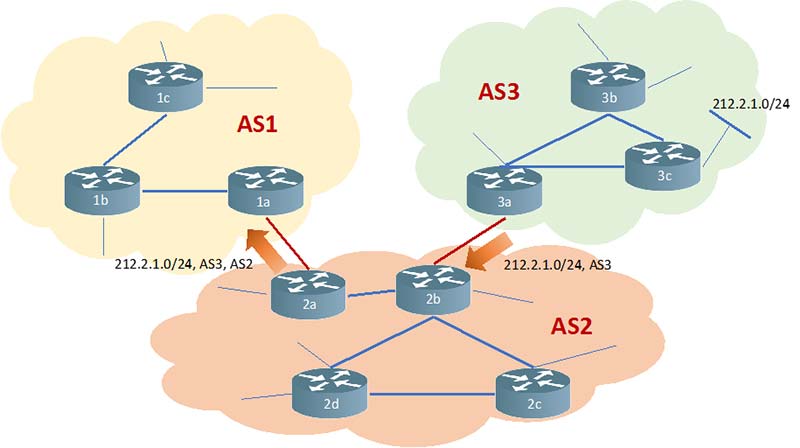

Figure shows three interconnected autonomous systems. AS3 autonomous system advertises a subnet to AS2, and then AS2 advertises to AS1.
