Internet approach to scalable routing
Aggregate routers into regions known as “autonomous systems” (AS). We distinguish between Intra-AS and Inter-AS routing.
Intra-AS routing protocols configure routers to make possible routing among host, routers in same AS (“network”). All routers in AS must run same intra-domain protocol. Routers in different AS can run different intra-domain routing protocol. A gateway router is at “edge” of its own AS, has link(s) to router(s) in other AS’es.
Inter-AS routing is focused on routing among AS’es. Gateways perform interdomain routing (as well as intra-domain routing).

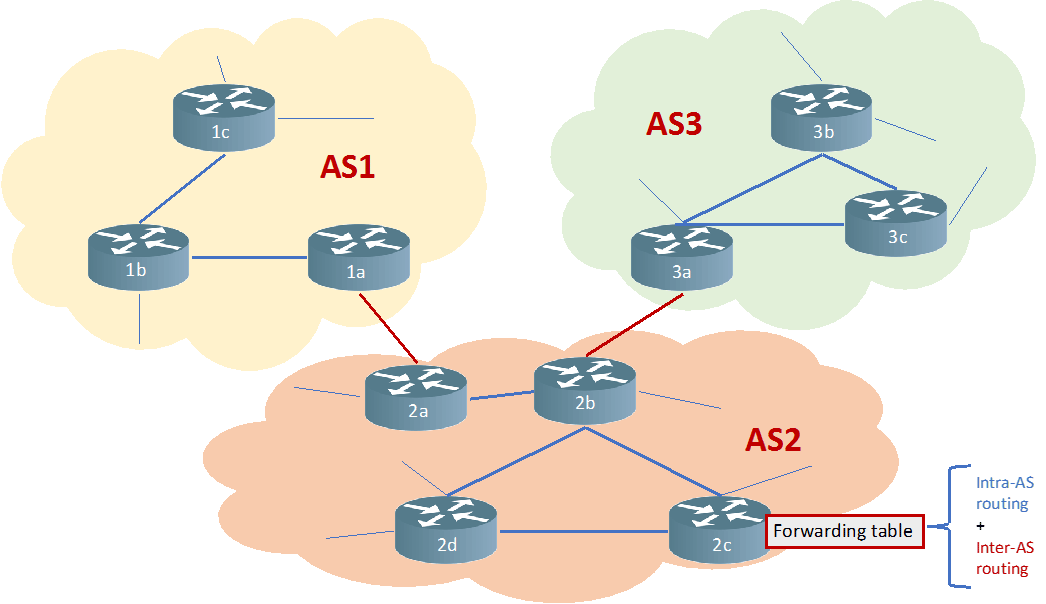

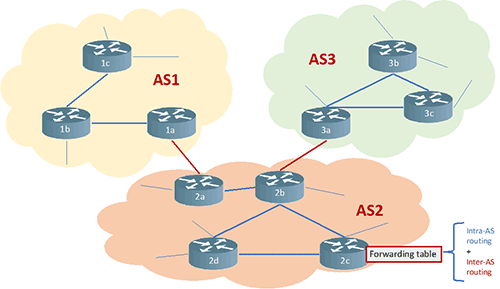

Figure 18 Example of three interconnected autonomous systems
Click to enlarge
-
