VLANs Virtual LANs

Switches supporting VLAN capabilities can be configured to define multiple virtual LANs over single physical LAN infrastructure.

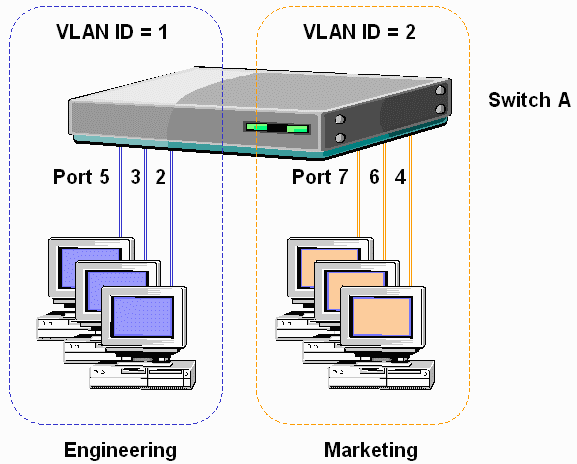

This figure shows a Switch which is divided into two virtual LANs. Each VLAN is assigned a predefined set of ports.

We also may have VLANs spanning multiple switches:

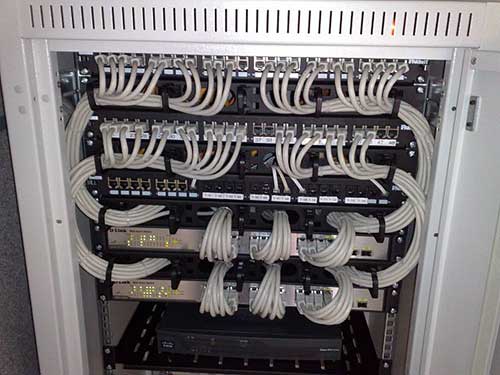

This figure shows a real rackmount with several Ethernet switches.

Trunk port carries frames between VLANs defined over multiple physical switches. Frames forwarded within VLAN between switches can’t be vanilla 802.1 frames. 801.1q protocol adds/removes additional header fields for frames forwarded between trunk ports.
